Stacked Chart

Description

A stacked chart is a type of bar chart that compares multiple variables by stacking related values on top of each other. It is also possible to group the data. The chart can be horizontally (bar) or vertically (column) oriented.

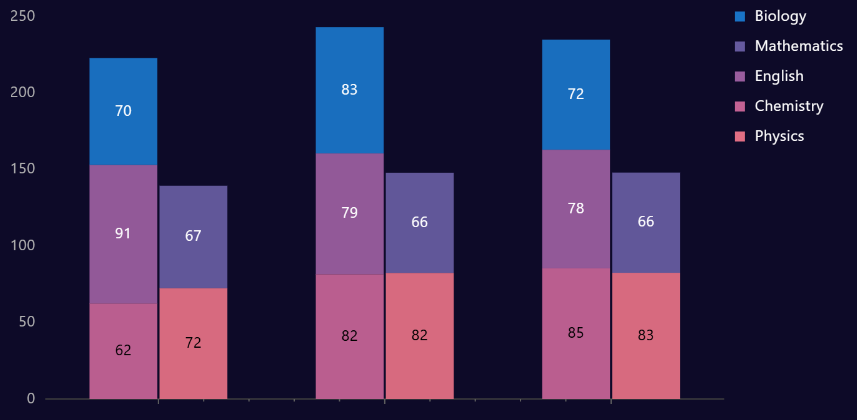

Preview

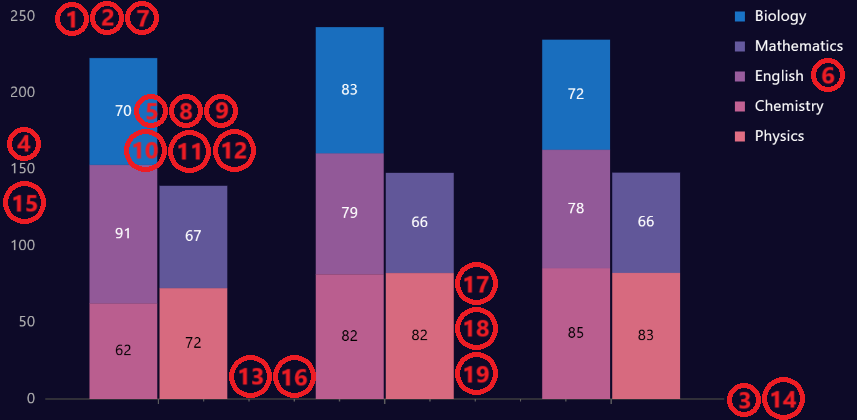

Config Details

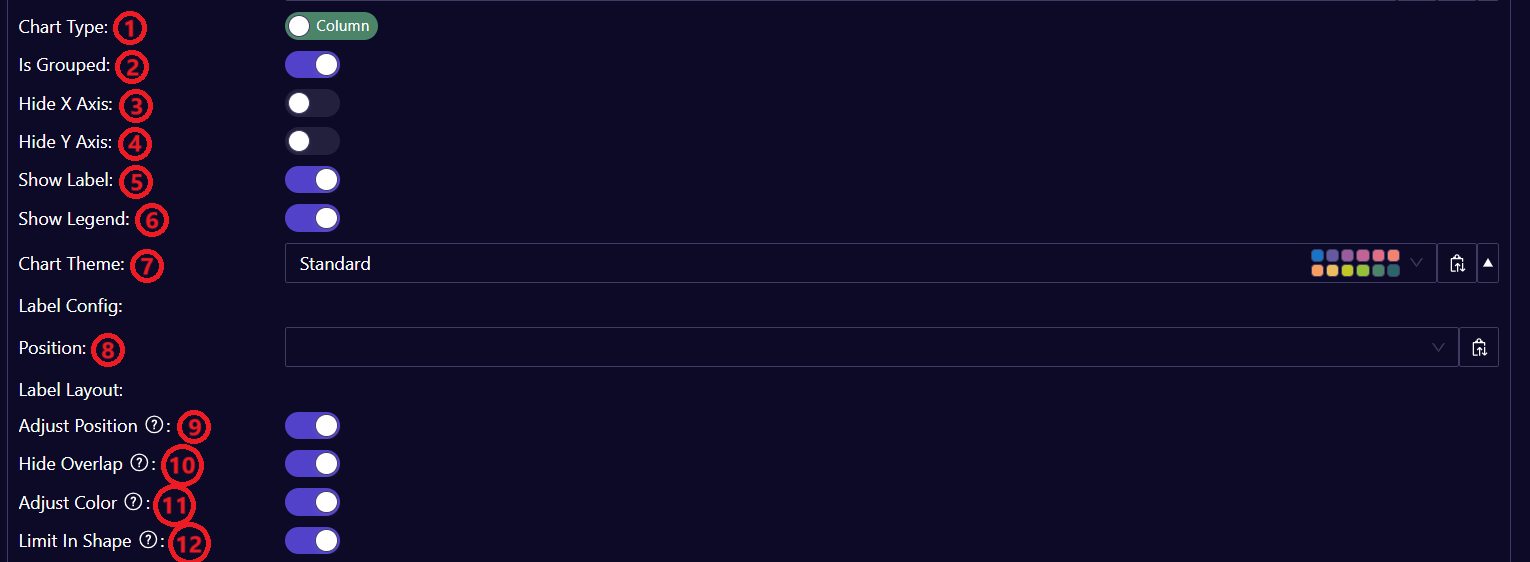

Overall Configuration

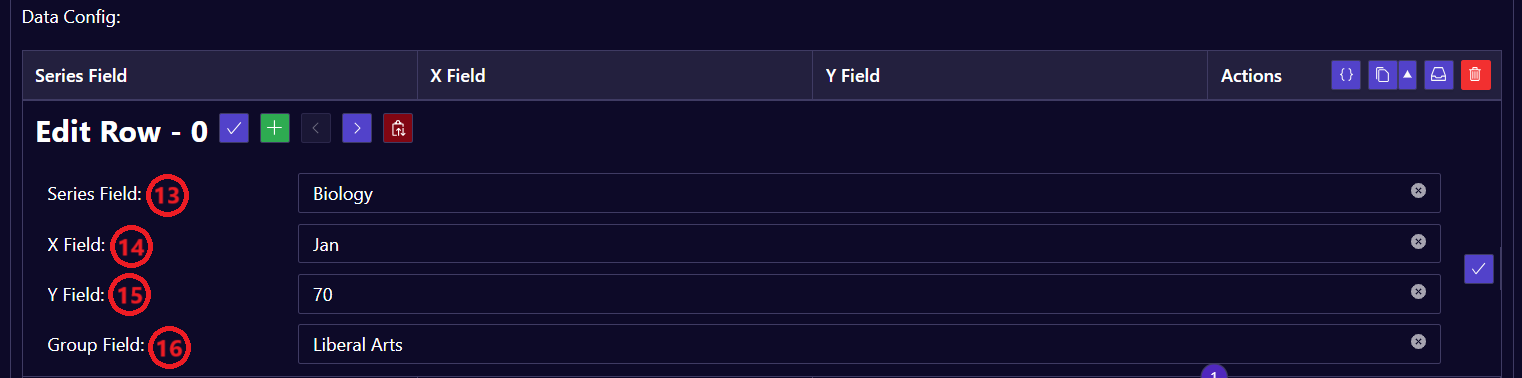

Data Configuration

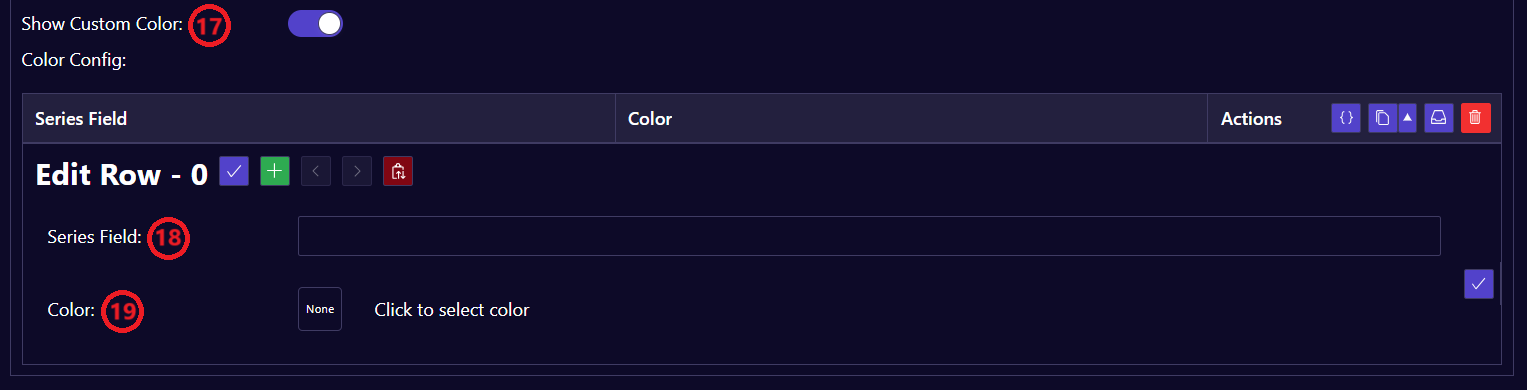

Custom Color Configuration

Ref No	Name	Description	Value	Recommended	Required
1	Chart Type	Defines the chart type (column or bar). Column: Will show bars vertically; Bar: will show bars horizontally.	Column, Bar	-	Yes
2	Is Grouped	Whether the chart is grouped. If true then the Group Field (Ref No 16) must be filled in.	True, False	-	No
3	Hide X Axis	Whether to hide the X axis.	True, False	-	No
4	Hide Y Axis	Whether to hide the Y axis.	True, False	-	No
5	Show Label	Whether to show the chart bar's label.	True, False	-	No
6	Show Legend	Whether to show the chart legend.	True, False	-	No
7	Chart Theme	Defines the color scheme to be applied to the bars.	Standard, Divergent, Single Hue	-	No
8	Position	Defines the label position relative to the bar.	If the chart type is Column: Top, Middle, Bottom. If chart type is Bar: Left, Center, Right	-	No
9	Adjust Position	Whether to automatically adjust the label position.	True, False	-	No
10	Hide Overlap	Whether to prevent label overlap.	True, False	-	No
11	Adjust Color	Whether to automatically define label text color.	True, False	-	No
12	Limit in Shape	Whether to show the label only if the bar is wide enough.	True, False	-	No
13	Series Field	Defines the series field value.	Text input	-	Yes
14	X Field	Defines the X axis field value.	Text input	-	Yes
15	Y Field	Defines the Y axis field value.	Text input	-	Yes
16	Group Field	Defines the group field value.	Text input	-	No
17	Show Custom Color	Whether to set custom colors for different series.	True, False	-	No
18	Series Field	Defines the series field for which the custom color will be applied.	Text input	-	No
19	Color	Defines the custom color.	Color picker	-	No
